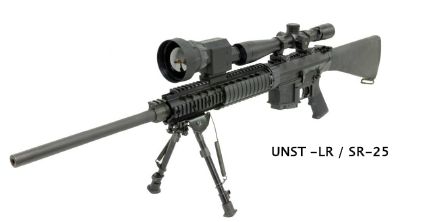

UNS-T-LR,
Long Range Clip-On Thermal Weapons Sight
Light Weight,
Miniature Design allows it to be mounted on a weapon
Engage a man-sized target at ranges beyond 500 meters and out
to 900 meters using sniper optics such as the following riflescopes.
Night
Force 8-32 x 56 NXS riflescope
U.S. Optics SN-9 3.8-22 x 58 riflescope
Uses 1 or 2 CR123 lithium batteries
640 x 480
(60 Hz) IR focal plane array
Installs in front of optics without
the need to adjust the aimpoint
Waterproof to 66 feet
MHRS and HUD Compatible
System Specifications
Batteries:
1 or 2 CR123 Lithium
Battery Lifetime: 6 hrs
Mounting: MIL-STD-1913
Weight: 23 oz.
Size: 6.75” L x 4”H x
3.25”W
Operating Temperature: –40
to +70 C
Immersion: Waterproof to 66 feet
Detector Type:
640 x 480 Vox Microbolometer
IR Spectral
Band: 8-12 microns
Display: Gray Scale
Video Output: RS-170
Frame Rate: 60 Hz (640 x 480)
Video Lag:
0 sec
Contrast: Automatic
Turn On Time: <0.4 sec
Reticle: Operator Selectable
Digital Zoom: 2X
Controls: Brightness, Calibration, Polarity, and Reticle
Optical Specifications
Field of View (FOV)
4.8
H x 3.6 V degrees
IFOV
0.25 mrad
5 vertical FPA pixels man size target @ 500 m
Magnification: Unity (1X)
Eye/Sight Position: 1 to 12 inches
Focus: 10m to Infinity
Zero Shift: <1/4 MOA
Shock Tested
with the following Weapons:
HK416, SR-25, M4, M16, A1-338, 300 WinMag, XM107, M240, M2
