UTB-N Universal Thermal Binocular
Contact us by email

webassets/oasys-logo-white.jpg

SALES RESTRICTED TO LAW ENFORCEMENT AND GOVERNMENT ONLY

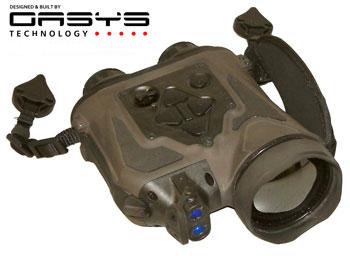

UTB™/ (Universal Thermal Binocular from OASYS Technology, LLC., is currently the hightest performance and smallest thermal binocular available which features true 640x480 [307,200 pixel] resolution.

An optional dual band IR and/or visible laser pointer is available Available with a choice of narrow, medium or wide FOV lenses With an operational runtime of more than 7.5 hours using (3) DL123 batteries

The UTB also utilizes a simple menu function featuring a single button press allowing for essential operation eliminating the need to remember locations on the device for different functions while operating the system in darkness.


Features:
The highest performance thermal binocular available
Rugged design with simple menu functions
Light weight, weighs 32 oz.
Water resistant
Operates for 7.5 hrs on 3 CR 123A battery
Can also be powered with “AA” Batteries
Digital video output
Still photo capability
Optional visible/IR laser pointers
Tripod Mountable

Benefits:
Greatly enhances vision at night or in dust or smoke conditions
Operates in no light
Remain covert while being able to see your target

Applications:
Covertly locate objects without visible light
Hot spot and disturbed surface detection
Routine crime watch patrols
Crime scene investigations
Provide a clear picture day or nightMonitor suspect’s day or night
Easily spot suspects in foliage or under vehicles

UTB/ Universal Thermal Binocular
Product Specifications
Focal Plane ArrayPixel Count (resolution)640x480 FPA
Spectral Response8-15 um LWIR
Frame Rate30 Hz
Sensitivity30 mK

Thermal Imaging PerformanceStartup Time< 1 sec.
Detection RangeMan sized object at 250 M

OpticsHFOV12.5 std, 5.5 and 30 degrees
Minimum Focus Distance5 m to infinity (1 rotation)
IFOV<0.34 mrad with 12.5 deg
Reticle Selection2
Magnification2.2X with 12.5 deg
Diopter Adj.-4 to +2
User changeable lensesWide or narrow FOV

VideoFormatRS-170
Data ConnectionUSB
Still Image CaptureYes

PowerBattery Type1-3 CR 123,  and “AA”
LifetimeUp to7.5 hrs
Auxiliary Power12V DC

EnvironmentalOperation Temp.-40 C to +80 C
Water and ShockFull Immersion to 66’ Optional

PhysicalSize6.5”L x 2.1”H x 5.2”W
Weight32 oz.
Eye Relief1’ to 8’ eye relief/standoff
Tripod InterfaceStandard

webassets/UTB_top.jpg

Part Numbers:

UTB-N
No Laser
$18,500.00

UTB-R
Red Laser
Call

UTB-R/IR
Red and IR Laser
Call

UTB-R-HP/IR-HP
Red and IR High Power Lasers
Call

SALES RESTRICTED TO LAW ENFORCEMENT AND GOVERNMENT ONLY
THESE SYSTEMS WILL BE SHIPPED DIRECTLY TO THE ORDERING AGENCY



Item #UTB-N


Price: $22000.00  Sale price $18500.00

Prices and Specifications subject to change without notice. Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
